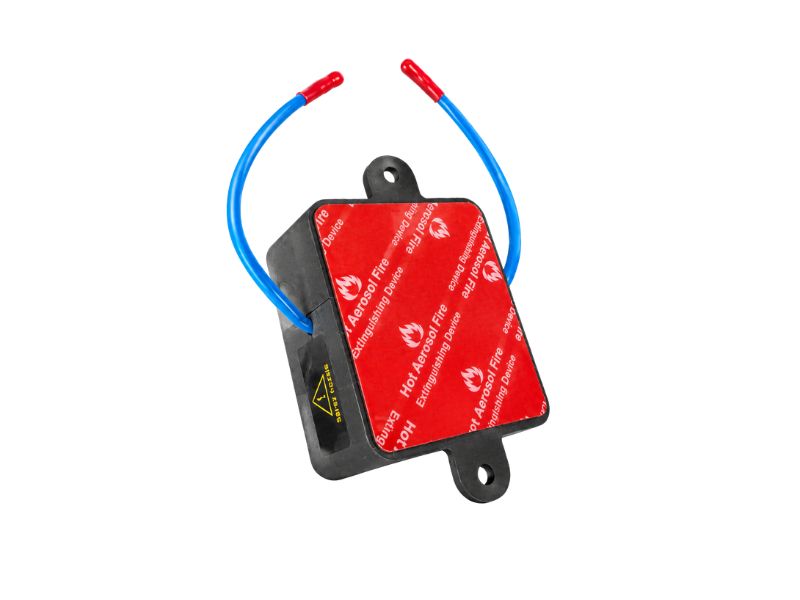

Thermal Aerosol Fire Extinguishing Device for Enclosed Spaces
The Compact Thermal Aerosol Fire Extinguishing Device is designed for early-stage fire suppression in enclosed and high-risk areas such as vehicle engine compartments, electrical boxes, battery packs, control panels and compressor compartments.
When the surrounding temperature reaches the activation threshold or the device is directly exposed to flame, it activates automatically and releases fire-extinguishing aerosol to suppress the fire rapidly. No external power supply or manual operation is required.
The housing is made of flame-retardant PA66, providing reliable structural protection and making the device suitable for installation in compact electrical and mechanical spaces.
Available in 10 g to 50 g models, the device can be selected according to the enclosure volume and fire protection requirements. It may be installed by adhesive mounting or guide-rail clip fixing depending on the application.
Key Features
- Automatic thermal fire activation
- Rapid aerosol fire suppression
- Compact design for enclosed spaces
- Flame-retardant PA66 housing
- No external power supply required
- Suitable for engine compartments, electrical boxes and battery packs
- Available from 10 g to 50 g
- Adhesive or clip mounting options
- Low maintenance and long service life

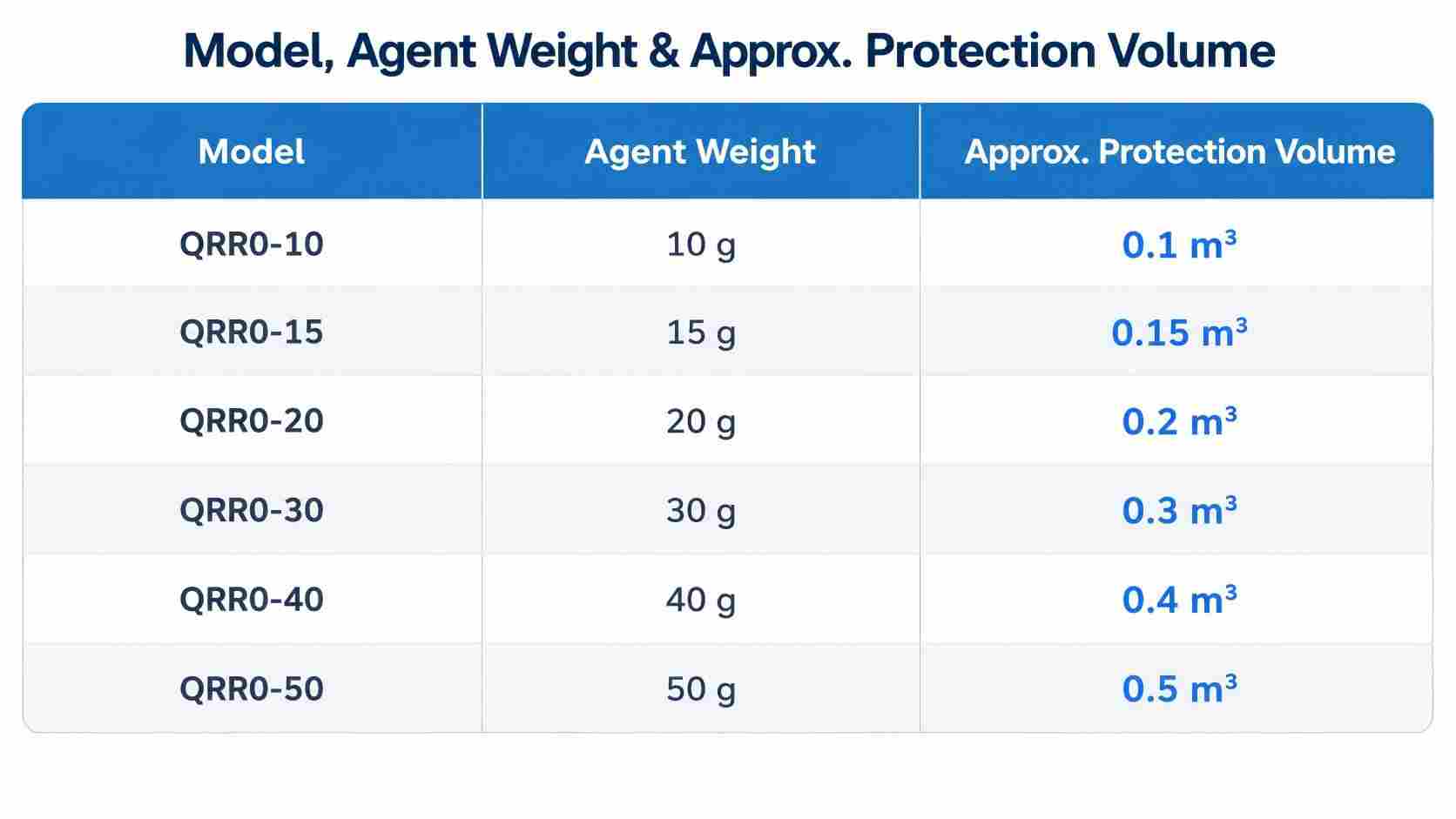

Protection Volume / Extinguishing Density
Heat Clearance / Safety Distance
Thermal Clearance 0.3 m: ≤75°C / 0.12 m: ≤200°C / 0.05 m: ≤400°C
Oxidizer Content
Oxidizer Content: Sr(NO3)2 60% / KNO3 20%
Typical Applications
- Vehicle engine compartments
- Electrical distribution boxes
- Battery packs
- Battery cabinets
- Compressor compartments
- Control panels
- Electrical enclosures
- Small enclosed machinery spaces
